10 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift
We are main manufacturer of mast platforms and boom lifts of China.
We have manufacture mast platforms 30 years. 10m High quality aircraft-quality aluminum twin mast elevated work platform manlift,
mainly design for indoor/ outdoor high level aerial works.
this models comes with aircraft-quality aluminum mast frame, compact & light weight,
the mast makes users comfort and safety at all working heights.
Download Specification catalog: R20 double mast 8-12m.pdf
Working Conditions
- Convention center
- Airports
- Hotel
- Auto stations and
- Highway station
- Business building
- Gym
Application Occasions
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Specifications
10 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform lift aerial work platform
| Manufacturer | SIVGE |
| Country of origin | China |
| Model | GTWR8-2008/ GTWR10-2010/ GTWR12-2012 |
| Max. Working height | 10/ 12/ 14 m |
| Max. Platform height | 8 /10/ 12m |
| Platform capacity | 300kg |
| Platform dimension | L1200×W600 / 1330* 600mm |
| Stored height | 2060mm |
| Stored length | 1390mm |
| Stored width | 880mm |
| Machine weight about | 610kg/ 680kg / 810kg |
| Power supply | DC24V with rechargeable battery |
| Power input | 1.2kw |
| Dual control | Platform and base control |
| Standard | EN280 |

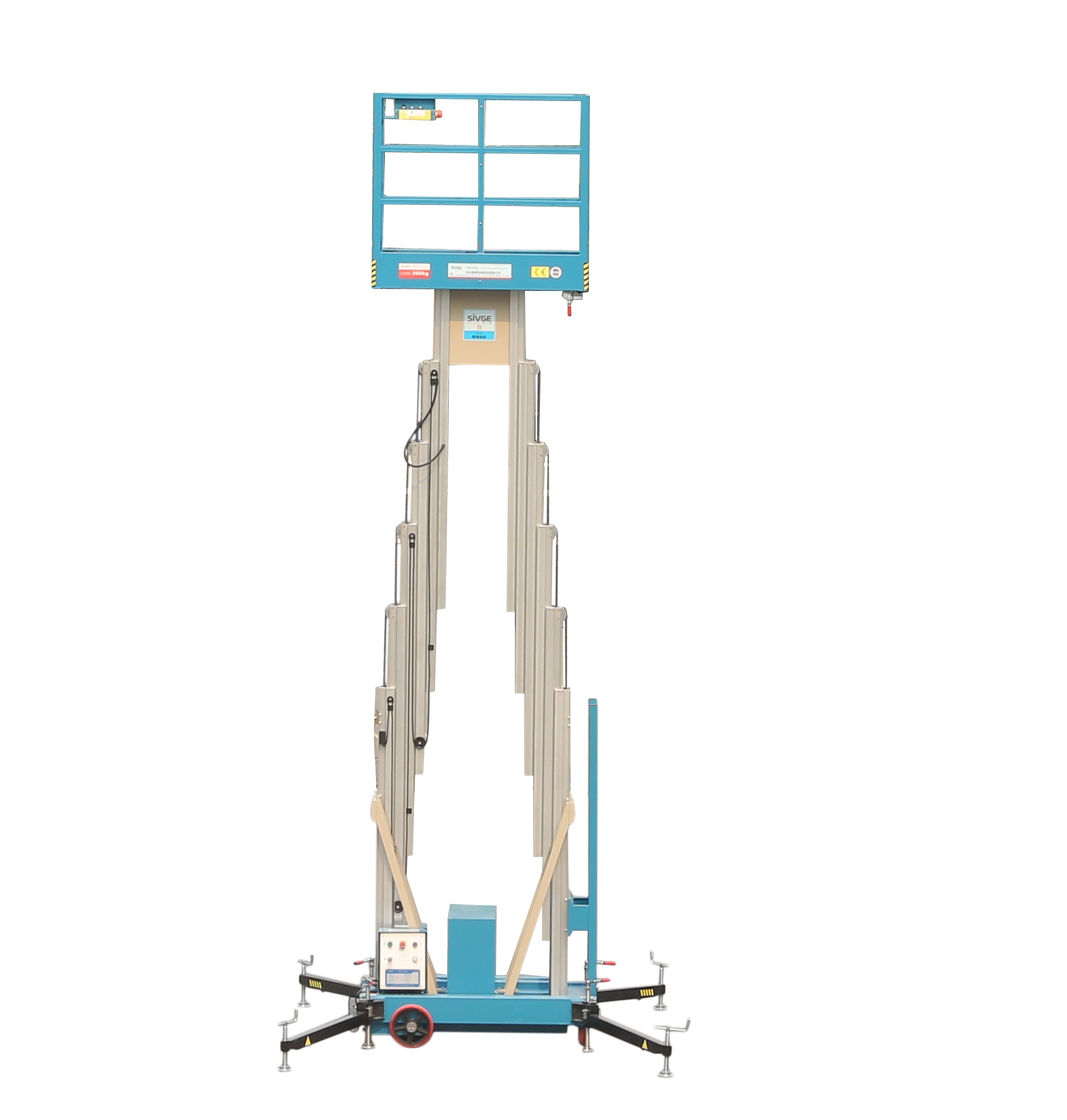

Photos as below;
Product features
- Overload limit
- Double safety protection with leveling stabilizers and outriggers support
- Hoist points at four corners
- No-marking wheels
- Dual controls operation
- Compact design with easy quick guardrail assemblage
- Emergency stop buttons at both controls
- Emergency lowering device in case of power supply failure
- 24V safe control voltage
- The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
- Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.
- Conform to EN 280:2013
Safe & Stable
safety is the basic concern point of SIVGE.
Professional & Innovative
The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.
SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.
LCL: plywood case with steel pallet at bottom
FCL: 7PCS per 20GP by steel pallet with anti-dust covers
Delivery time is usually 30 days according to order qty. and models.
Using purpose:
- Business decoration
- ceiling/fixture works
- industrial facilities maintenance,
- lamps and lanterns replacement in halls
- maintenance of street lamp
- aerial photographs
- wall cleaning etc.
Safe & Reliable
Safety is the main concern of SIVGE.
Professional & Innovative
SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.
We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.
LCL: plywood case with steel pallet
FCL: steel pallet with anti-dust cover
Delivery time is usually 30 days after order comfirmation.
